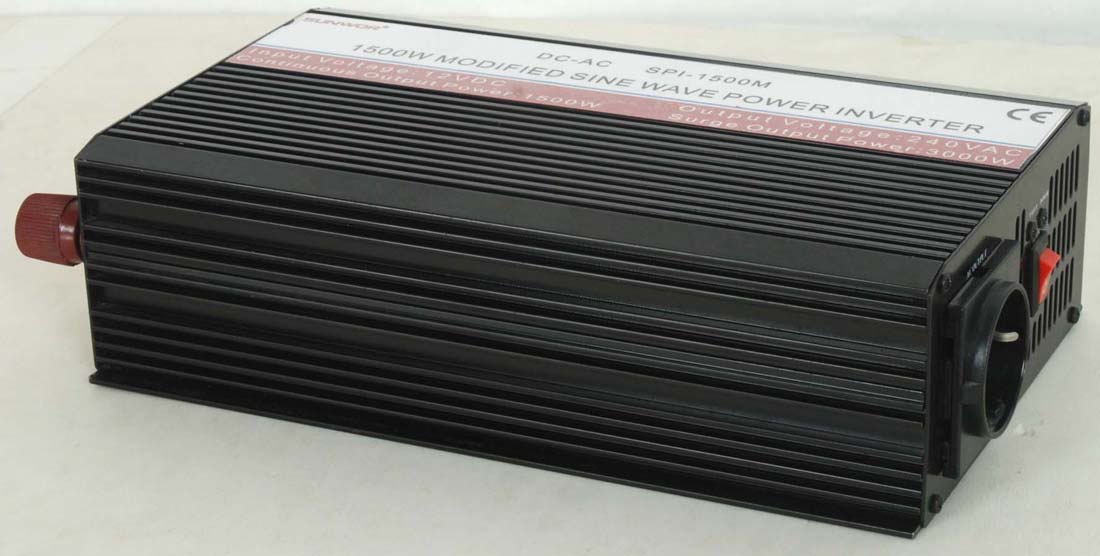

1500W Modified Sine Wave Power Inverter

1500W Modified Sine Wave DC-AC Power Inverter

Power inverter instantly convert low voltage DC power to high voltage AC household power.
With innovative design and super efficiency, SUNWOR power inverter is widely applied for power tools, home appliance, office equipment, portable equipment…etc.
You can use in many places, such as cars,trucks, trailers, boats, solar system, wind generator.

● Features
◆ 12V or 24V or 48V DC input
◆ Output waveform: Modified sine wave
◆ Power On/Off switch
◆ LED indication
◆ High efficiency>90%
◆ High-velocity cooling fan
◆ Anodized aluminum case provides durability & max heat dissipation
◆ 10pcs/carton,Carton Size:42×37×50.5cm,G.W:30kg
◆ 1 year warranty

◆ All protection functions:
SUNWOR Power Inverter is with ALL necessary protection functions.
1.Soft start
2.AC output short-circuit and leakage protection
3.High-low voltage isolation
4.Input DC low voltage alarm,then shutdown
5.Input DC high voltage alarm shutdown
6.Overload shutdown
7.Over heat shutdown
8.Input polarity reverse shutdown

● Specification

Item No.		SPI-1500M12	SPI-1500M24
Output	AC Voltage	100/110/120VAC,220/230/40VAC
	Continuous Power	1500W
	Surge Power	3000W
	Waveform	Modified Sine Wave
Input	DC Voltage	12VDC	24VDC
	Voltage Range	10.5～15VDC	21～30VDC
	No Load Current Draw	<0.5A
	Fuse	35A×6pcs	15A×6pcs
Protection	Battery Low Alarm	10.5+0.5V	21+1V
	Battery Less Shutdown	10+0.5V	20+1V
	Overload	>1800W,shut down,re-operate automatically when load in normal
	Over Voltage	15～16VDC	30～32VDC
	Over Temperature	>65 ℃,Shut off,re-operate automatically when temperature goes down.
	Short Circuit	Shut off,re-operate automatically after fault condition is removed.
	Input Polarity Reverse	Fuse burnt,replace with a new fuse.
