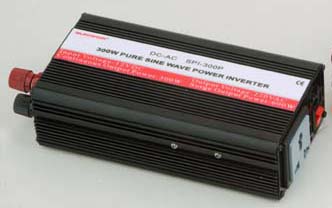

300W Pure Sine Wave DC-AC Power Inverter

300W Pure Sine Wave DC-AC Power Inverter


Power inverter instantly convert low voltage DC power to high voltage AC household power.
With innovative design and super efficiency, SUNWOR power inverter is widely applied for power tools, home appliance, office equipment, portable equipment…etc.
You can use in many places, such as cars,trucks, trailers, boats, solar system, wind generator.

● Features
◆ 12V or 24V or 48V DC input
◆ Output waveform: Pure sine wave
◆ THD<3%
◆ Power On/Off switch
◆ LED indication
◆ High efficiency>90%
◆ High-velocity cooling fan
◆ Anodized aluminum case provides durability & max heat dissipation
24pcs/carton,Carton Size:49.5×39×28cm,G.W:26kg
◆ 1 year warranty

All protection functions:
SUNWOR Power Inverter is with ALL necessary protection functions.
1.Soft start
2.AC output short-circuit and leakage protection
3.High-low voltage isolation
4.Input DC low voltage alarm,then shutdown
5.Input DC high voltage alarm shutdown
6.Overload shutdown
7.Over heat shutdown
8.Input polarity reverse shutdown


● Specification


Item No.

SPI-300P12

SPI-300P24

Output

AC Voltage

100/110/120VAC,220/230/40VAC

Continuous Power

300W

Surge Power

600W

Waveform

Pure Sine Wave

Input

DC Voltage

12VDC

24VDC

Voltage Range

10.5~15VDC

21~30VDC

No Load Current Draw

<0.4A

Fuse

20A×2pcs          20A×1pc

Protection

Battery Low Alarm

10.5+0.5V

21+1V

Battery Less Shutdown

10+0.5V

20+1V

Overload

>450W,shut down,re-operate automatically when load in normal

Over Voltage

15~16VDC

30~32VDC

Over Temperature

>65 ℃,Shut off,re-operate automatically when temperature goes down.

Short Circuit

Shut off,re-operate automatically after fault condition is removed.

Input Polarity Reverse

Fuse burnt,replace with a new fuse.
