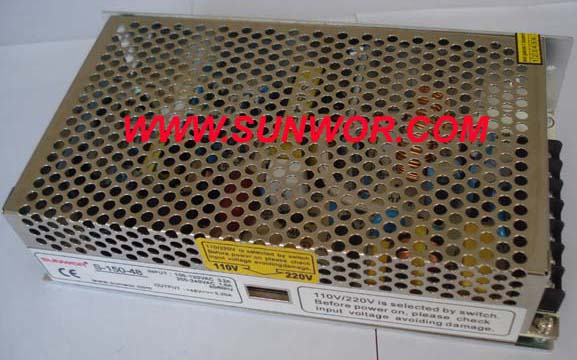

150W Single Output Switching Power Supply

150W Single Output Switching Power Supply





Technical Data

Index Type

S-150-5

S-150-7.5

S-150-9

S-150-12

S-150-13.5

S-150-15

S-150-24

S-150-27

S-150-48

  DC Voltage

5V

7.5V

9V

12V

13.5V

15V

24V

27V

48V

  Voltage Tolerance

±2%

±1%

±1%

±1%

±1%

±1%

±1%

±1%

±1%

  Rated Current

30A

20A

16.7A

12.5A

11.2A

10A

6.5A

5.6A

3.2A

  Current Range

0-30A

0-20A

0-16.7A

0-12.5A

0-11.2A

0-10A

0-6.5A

0-5.6A

0-3.2A

Ripple&Noise(Max.)

150mVp-p

150mVp-p

180mVp-p

180mVp-p

180mVp-p

180mVp-p

240mVp-p

240mVp-p

240mVp-p

  Line Regulation

±0.5%

±0.5%

±0.3%

±0.3%

±0.3%

±0.3%

±0.2%

±0.2%

±0.2%

  Load Regulation

±1%

±0.5%

±0.3%

±0.3%

±0.3%

±0.2%

±0.2%

±0.2%

±0.2%

  Rated Power

150W

150W

150.3W

150W

151.25W

150W

156W

151.2W

153.6W

  Efficiency

78%

80%

80%

82%

83%

84%

85%

86%

87%

  Voltage Adjust Range

4.5-5.5V

6-8.3V

8-10.4V

10.6-13.2V

12-15V

13.5-16.5V

21-28V

24-30V

43-53V

  Voltage Range

88132VAC/176-264VAC auto switch 4763Hz;248370VDC

  AC Current

3.2A/115V1.6A/230V

  Inrush Current(Max.)

cold start current 30A/115V60A/230V

  Leakage Current

<3.5mA/240VAC

  Overload Protection

105%-150%TYPEOUTPUT CUTOUT AC Restart

  Over-voltage Protection

115%-135%

  Over-temperature Protection

......................

  Temp.Coefficient

±0.03%/(050)

  Setup.Rise,Hold Time

100ms,50ms,20ms

  Vibration

10500Hz,2G10min,/11cycle,60min,each axes

  Withstand Voltage

I/P-O/P:3KVACI/P-FG:1.5KVACI/P-FG:0.5KVAC

  Isolated Resistor

I/P-O/P,I/P-FG,I/P-FG:500VDC/100MΩ

  Working Temp.Humidity

-10+60(REFER TO CHARACTER CURVE),20%90RH

  Storage Temp.Humidity

-20+85,10%95%RH

  Dimension

199×110×50mm

  Weight

0.8kg

  Safety Standards

UL1950 TUV60950

  EMC

CISPR22(55022),IEC1000-4-2,3,4,5 IEC1000-3-2



Note
1.All parameters NOT specially mentioned are measured at 230VAC input ,rated load and 25 of ambient temperature.
2.Tolerance:includes set up tolerance,line regulation and load regulation
3.Ripple&noise are measured at 20MHZ of bandwidth by using a 12 twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.
4.line regulation:min&max voltage of the rated load.
5.load regulation:load from 0 to 100%.
