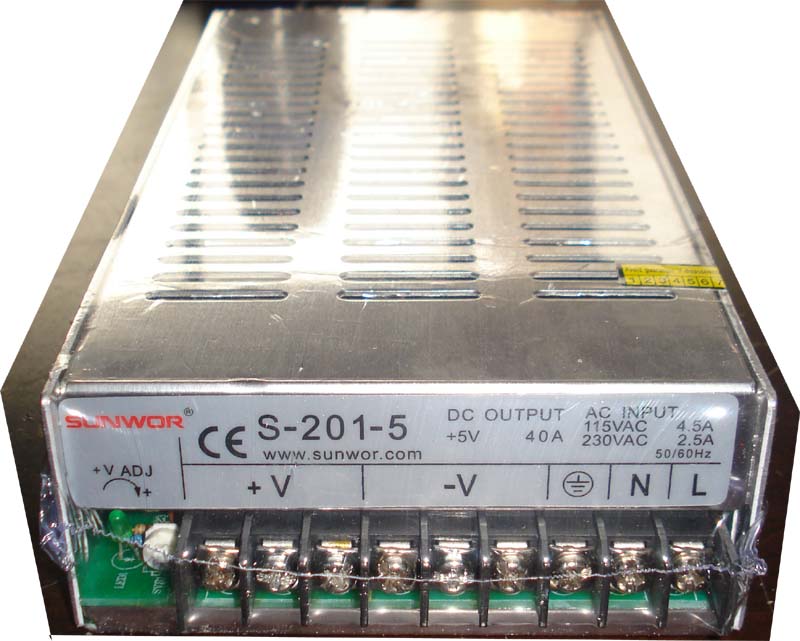

200W Single Output Switching Power Supply

200W Single Output AC-DC Switching Power Supply






Technical Data

Index Type

S-200-5

S-200-7.5

S-200-12

S-200-13.5

S-200-15

S-200-24

S-200-27

S-200-48

DC Voltage

5V

7.5V

12V

13.5V

15V

24V

27V

48V

Voltage Tolerance

±2%

±2%

±1%

±1%

±1%

±1%

±1%

±1%

Rated Current

40A

26.5A

16.5A

14.7A

13A

8.3A

7.4A

4.2A

Current Range

0-40A

0-26.5A

0-16.5A

0-14.7A

0-13A

0-8.3A

0-7.4A

0-4.2A

Ripple&Noise(Max.)

150mVp-p

150mVp-p

150mVp-p

150mVp-p

150mVp-p

150mVp-p

200mVp-p

240mVp-p

Line Regulation

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Load Regulation

±1%

±1%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Rated Power

200W

198.75W

198W

198.45W

198W

199.2W

199.8W

201.6W

Rated Power

74%

79%

80%

80%

81%

83%

83%

84%

Voltage Adjust Range

4.5-5.6V

6-9V

10-13.2V

12-15V

13.5-18V

20-26.4V

26-32V

41-56V

Voltage Range

90132VAC/180-264VAC 4763Hz;255370VDC

AC Current

4.5A/115V2.5A/230V

Inrush Current(Max.)

25A/115V50A/230V

Leakage Current

<3.5mA/240VAC

Overload Protection

105-145% TYPEOUTPUT CUTOUT AC Restart

Over-voltage Protection

......................

Over-temperature Protection

 ......................

Temp.Coefficient

±0.03%/(050)

Setup.Rise,Hold Time

200ms,100ms,20ms

Vibration

10500Hz,2G10min,/11cycle,60min,each axes

Withstand Voltage

I/P-O/P:1.5KvACI/P-FG:1.5KvACI/P-FG:0.5KvAC

Isolated Resistor

I/P-O/P,I/P-FG,I/P-FG:500VDC/100MΩ

Working Temp.Humidity

-10+50,20%90RH

Storage Temp.Humidity

-20+85,10%95%RH

Dimension

215×115×50mm

Weight

0.9Kgs

Safety Standards

UL1950

EMC

FCC part1.5J class A



Note
1.All parameters NOT specially mentioned are measured at 230VAC input ,rated load and 25 of ambient temperature.
2.Tolerance:includes set up tolerance,line regulation and load regulation
3.Ripple&noise are measured at 20MHZ of bandwidth by using a 12 twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.
4.Line regulation:min&max voltage of the rated load.
5.Load regulation:load from 0 to
100%
