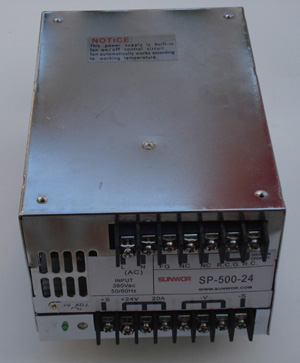

500W Single Output Switching Power Supply

500W Single Output Switching Power Supply






Technical Data

Index Type

SP-500-12

SP-500-13.5

SP-500-15

SP-500-24

SP-500-27

SP-500-48

DC Voltage

12V

13.5V

15V

24V

27V

48V

Voltage Tolerance

±2%

±2%

±1%

±1%

±1%

±1%

Rated Current

40A

36A

32A

20A

18A

10A

Current Range

0-40A

0-36A

0-32A

0-20A

0-18A

0-10A

Ripple&Noise(Max.)

240mVp-p

240mVp-p

240mVp-p

240mVp-p

200mVp-p

300mVp-p

Line Regulation

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Load Regulation

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Rated Power

480W

486W

480W

480W

486W

480W

Efficiency

84%

84%

83%

85.5%

86.5%

87%

Voltage Adjust Range

10-13.2V

12-15V

13.5-18V

20-26.4V

24-30V

41-56V

Voltage Range

88264VAC 47-63Hz;124370VDC

AC Current

7A/115V3.5A/230V

Inrush Current(Max.)

18A/115V36A/230V

Leakage Current

<3.5mA/240VAC

Overload Protection

105-135% TYPECurrent limitation auto recovery

Over-voltage Protection

13.8-16.2V

15.5-18.2V

18-21V

27.6-32.4V

31-36.5V

57.6-67.2V

Over-temperature Protection

≥55FAN ON ≤45FAN OFF ≥70OUTPUT CUTOUT

Temp.Coefficient

±0.03%/(050)

Setup.Rise,Hold Time

1.5s,50ms,20ms

Vibration

10500Hz,2G10min,/11cycle,60min,each axes

Withstand Voltage

I/P-O/P:3KVACI/P-FG:1.5KVACI/P-FG:0.5KVAC

Isolated Resistor

I/P-O/P,I/P-FG,I/P-FG:500VDC/100MΩ

  Working Temp.Humidity

-10+50,20%90RH

  Storage Temp.Humidity

-20+85,10%95%RH

  Dimension

185×120×93mm

  Weight

1.8kg

  Safety Standards

UL1950

  EMC

CISPR22(EN 55022),IEC1000-4,2,3,4,5,6,8,11 IEC1000-3-2



Note
1.All parameters NOT specially mentioned are measured at 230VAC input ,rated load and 25 of ambient temperature.
2.Tolerance:includes set up tolerance,line regulation and load regulation
3.Ripple&noise are measured at 20MHZ of bandwidth by using a 12 twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.
4.Line regulation:min&max voltage of the rated load.
5.Load regulation:load from 0 to
100%
