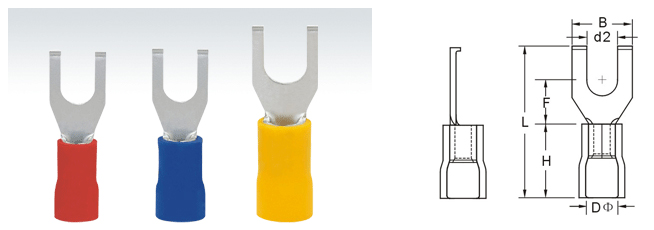

Rurcated Pre-insulating Terminal

Rurcated Pre-insulating Terminal





1.Cable size: 0.5~1.5mm2(A.W.G 22~16)

Max current:Imax=10A     Material:Purple Copper  Thickness:0.75mm

Type

USA screw

Bolt d2 dia.

 (mm)

Dimension(mm)

Color

B

L

F

H

Dφ



FSV 1.25-3.5

#6

3.7

7.5

19.0

5.1

10.0

4.3

Red



FSV 1.25-4

#8

4.3

7.5

19.0

5.1



FSV 1.25-5

#10

5.3

7.5

19.0

5.1



2.Cable size: 1.5~2.5mm2(A.W.G 16~14)

Max current:Imax=27A     Material:Purple Copper   Thickness:0.8mm

Type

USA screw

Bolt d2 dia.

 (mm)

Dimension(mm)

Color

B

L

F

H

Dφ



FSV 2-3.5

#6

3.7

7.5

19.0

5.2

10.0

4.9

Blue



FSV 2-4

#8

4.3

7.5

19.0

5.2



FSV 2-5

#10

5.3

7.5

19.0

5.2



3.Cable size: 4~6mm2(A.W.G 12~10)

Max current:Imax=48A    Material:Purple Copper   Thickness:1.0mm

Type

USA screw

Bolt d2 dia.

 (mm)

Dimension(mm)

Color

B

L

F

H

Dφ



FSV 5.5-3.5

#6

3.7

8.5

25.5

7.5

13.0

6.7

Yellow



FSV 5.5-4

#8

4.3

8.5

25.5

7.5



FSV 5.5-5

#10

5.3

8.5

25.5

7.5
