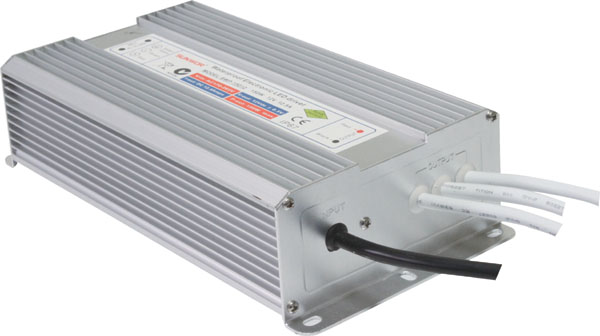

SWP-150

150W Waterproof LED Power Supply







Technical Data

Index Type

SWP-150-12

SWP-150-24

DC output

12V   12.50A

24V  6.25A

Wave and noise

200mVP-P

200mVP-P

Inlet stability

±0.5%

±0.5%

Load stability

±2%

±2%

Efficiency

82%

83%

Adiustable range for DC voltage

12V±10%

24V±10%

AC input voltage range

85-264VAC  47-63HZ

AC Inrush current

Cold-start current 15A/115V     30A/230V

OverLoad protection

105%--150%    hiccup mode ,auto-recovery

Over-voltage protection

121%-142% rated out put voltage

Setup,rise,hold up time

100ms, 60ms, /230VAC  at full load

Withstand voltage

I/P-O/P1.5KvAC I/P-FG:1.5Kv O/P-FG:0.5Kv  1 minute

Isolation resistance

I/P-O/P  I/P-FG  O/P-FG:500VDC/100MΩ

Working temperature

~-10----+50

Safety standards

Design refer to GB4943,UL60950,EN60950

EMC standards

Design refer to  GB9254,EN55022 classB

Weight

2.80 kg
