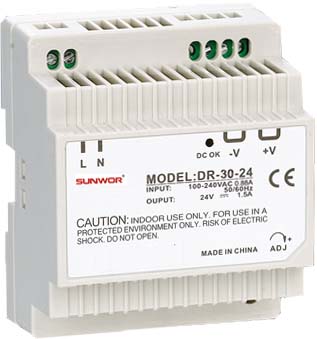

Model

DR-30-5

DR-30-12

DR-30-24

output

DC voltage

5V

12V

24V

Voltage tolerance

±2%

±1%

±1%

Rated current

3A

2A

1.5A

Current range

0~3A

0~2A

0~1.5A

Rated power

15W

24W

36W

Ripple&noise

80mvp-p

100mvp-p

150mvp-p

DCvoltage ADJ.range

±10%

±10%

±10%

input

Voltage range

90~264VAC，127~373VDC

frequency

47~63HZ

AC current

0.88A/110VAC，0.48A/220VAC

efficiency

75%

81%

83%

Inrush current

Cold start current  15A/115VAC，30A/230VAC

Leakage current

< 1mA/240VAC

protection

Over load

Rated output power105%~150%  start over load protection

protection type：hiccup mode，auto-recovery after fault condition is removed

over voltage

6.8~8.2V

15.6~17.8V

30.6~33.2V

protection type:cut off output voltage,diode clamp

environment

Working temp,humidity

-20℃~+60℃，20%~90%RH

Storagetemp,humidity

-40℃~+85℃，10%~95%RH non-condensing

Withstand vibration

10~500HZ，2G 10min/1cycle，period for 60 minutes，each axes

safety

Withstand voltage

I/P-O/P：3KVAC I/P-FG：1.5KVAC O/P-FG：0.5KVAC

Isolated resistance

I/P-O/P,I/P-FG,O/P-FG：100M ohms/500VDC

standard

Safety standard

 UL1012

EMC standard

EN55022，CLASSA

others

Dimension

78*93*56mm (L*W*H)

Weight

0.27 kg
