DT(G) JG

DT(G) JG Copper Connecting Terminal


Application

These products are applicable to the connection of wires in distribution equipment, power supply cable with electronic apparatus, it is made of (T2)copper tube by die cast and coated tin.

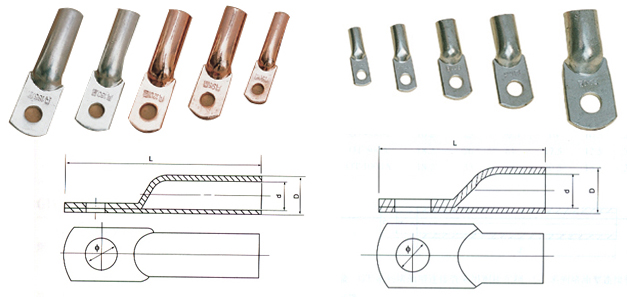

Technical Data

Type

φ

D

d

L



































Type

φ

D

d

L

 DT(G)-10

6.2

8

5

52

JG-10

6.2

8

5

38

DT(G)-16

6.2

9

6

57

JG-16

8.4

9

6

41

DT(G)-25

6.2

10

7

62

JG-25

8.4

10

7

46

DT(G)-35

8.5

11

8

66

JG-35

8.5

11

8

52

DT(G)-50

8.5

13

10

72

JG-50

8.5

13

10

54

DT(G)-70

10.5

16

12

80

JG-70

10.5

16

12

61

DT(G)-95

10.5

18

14

85

JG-95

10.5

18

14

66

DT(G)-120

12.5

20

15

96

JG-120

12.5

20

15

73

DT(G)-150

12.5

23

17

102

JG-150

12.5

23

17

77

DT(G)-185

14.5

25

19

114

JG-185

14.5

25

19

86

DT(G)-240

16.5

27

21

120

JG-240

16.5

27

21

93

DT(G)-300

16.5

31

24

135

JG-300

16.5

31

24

103

DT(G)-400

18.5

34

26

150

JG-400

18.5

34

26

113

DT(G)-500

20.5

38

30

170

JG-500

20.5

38

30

124

DT(G)-630

22.5

45

35

210

JG-630

22.5

45

35

140

DT(G)-800

22.5

50

40

270

JG-800

22.5

50

40

170
