SC(JGY JGB)

SC(JGY JGB) Copper Connecting Tube



Application

There products are suitable for the connection of copper conductors in power cable with electronic equipment.

They are made of with higher 99.9% pure copper tube T2 and coated with tin. Working temperature is from -55℃ to 150℃.

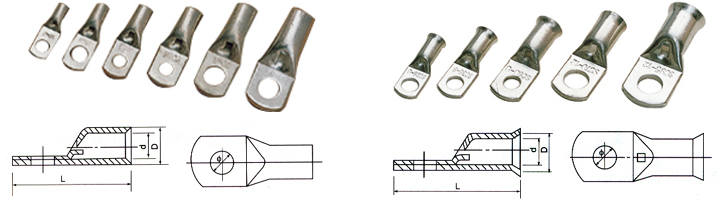

Technical Data

Type

φ

D

d

L

SC(JGY)-1.5

φ4.2, φ5.2

3.5

1.8

18

SC(JGY)-2.5

φ4.2, φ5.2,φ6.2

4

2.5

19

SC(JGY)-4

φ5.2,φ6.2

4.8

3.1

21

SC(JGY)-6

φ5.2,φ6.2,φ8.2

5.5

3.8

24

SC(JGY)-10

φ6.2,φ8.2

6.8

4.8

25.5

SC(JGY)-16

φ6.2,φ8.2,φ10.5

7.5

5.5

30.5

SC(JGY)-25

φ6.2,φ8.2,φ10.5

9

7

34

SC(JGY)-35

φ6.2,φ8.2,φ10.5,φ12.5

10.5

8.2

38

SC(JGY)-50

φ8.2,φ10.5,φ12.5

12.5

9.8

45

SC(JGY)-70

φ8.2,φ10.5,φ12.5

14.5

11.5

50

SC(JGY)-95

φ10.5,φ12.5

17.5

13.8

55.5

SC(JGY)-120

φ12.5,φ16.5

19.5

15.5

63

SC(JGY)-150

φ12.5,φ16.5

21

16.5

71

SC(JGY)-185

φ16.5

23.5

18.8

78

SC(JGY)-240

φ16.5

26.5

21

92

SC(JGY)-300

φ16.5,φ20.5

30

24

102

SC(JGY)-400

φ16.5,φ20.5

34

26.5

113

SC(JGY)-500

φ16.5,φ20.5

38

30

123

SC(JGY)-630

φ20.5

45

35

135

SC(JGY)-800

φ22.5

50

39

170

SC(JGY)-1000

φ22.5

56

44

200
