SC(JGK JGA)

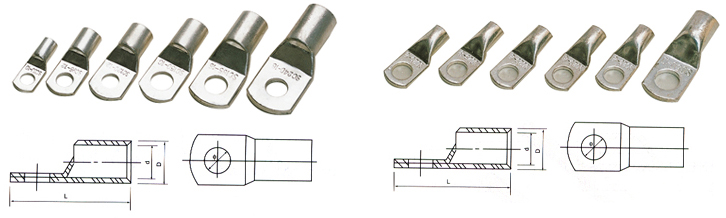

SC(JGK JGA) Copper Connecting Tube



Application

There products are suitable for the connection of copper conductors in power cable with electronic equipment.

They are made of with higher 99.9 percent pure copper tube T2 and coated with tin. Working temperature is from -55℃ to 150℃.



Technical Data

Type

Ø

D

d

L

SC-1.5

Øf4.2,f5.2

3.5

1.8

18

SC-2.5

Øf4.2,f5.2,f6.2

4

2.5

19

SC-4

Øf5.2,f6.2

4.8

3.1

21

SC-6

Øf5.2,f6.2,f8.2

5.5

3.8

24

SC-10

Øf 6.2,f8.2

6.8

4.8

25.5

SC-16

Øf6.2,f8.2,f10.5

7.5

5.5

30.5

SC-25

Øf6.2,f8.2,f10.5

9

7

34

SC-35

Øf6.2,f8.2,f10.5,f12.5

10.5

8.2

38

SC-50

Øf8.2,f10.5,f12.5

12.5

9.8

45

SC-70

Øf8.2,f10.5,f12.5

14.5

11.5

50

SC-95

Øf10.5,f12.5

17.5

13.8

55.5

SC-120

Øf12.5,f16.5

19.5

15.5

63

SC-150

Øf12.5,f16.5

21

16.5

71

SC-185

Øf16.5

23.5

18.8

78

SC-240

Øf16.5

26.5

21

92

SC-300

Øf16.5 f20.5

30

24

102

SC-400

Øf16.5 f20.5

34

26.5

113

SC-500

Øf16.5 f20.5

38

30

123

SC-630

Øf20.5

45

35

135

SC-800

Øf22.5

50

39

170

SC-1000

Øf22.5

56

44

200
