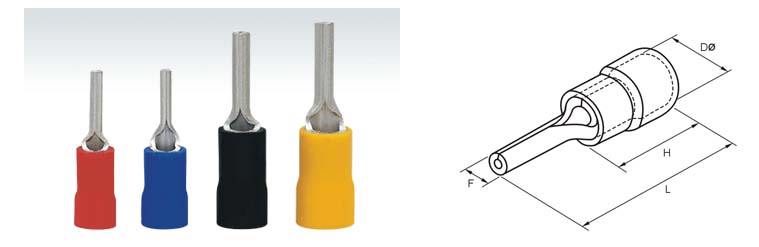

Pin-shaped Pre-insulating Terminal

Pin-shaped Pre-insulating Terminal

1.Cable size: 0.5~1.5mm2(A.W.G.22~16)

Max current: Imax=19A     Material:purple copper    Thickness:0.75mm

Type

Dimension(mm)

Color

F

L

H

Dφ



PTV 1.25-9

1.9

19.0

10.0

4.3

Red



PTV 1.25-10

1.9

20.0



PTV 1.25-12

1.9

22.0



PTV 1.25-13

1.9

23.0



PTV 1.25-18

1.9

28.0

2.Cable size: 1.5~2.5mm2(A.W.G.16~14)

Max current: Imax=27A     Material:purple copper    Thickness:0.8mm

Type

Dimension(mm)

Color

F

L

H

Dφ



PTV 2-9

1.9

19.0

10.0

4.9

Blue



PTV 2-10

1.9

20.0



PTV 2-12

1.9

22.0



PTV 2-13

1.9

23.0



PTV 2-18

1.9

28.0

3.Cable size: 2.5~4mm2(A.W.G.14~12)

   Max current: Imax=36A     Material:purple copper    Thickness:1.0mm

Type

Dimension(mm)

Color

F

L

H

Dφ



PTV 3.5-9

2.8

20.0

13.0

6.2

Black



PTV 3.5-10

2.8

25.5



4.Cable size: 4~6mm2(A.W.G. 12~10)

Max current: Imax=48A     Material:purple copper    Thickness:1.0mm

Type

Dimension(mm)

Color

F

L

H

Dφ



PTV 5.5-13

2.8

25.5

13.0

6.7

Yellow
