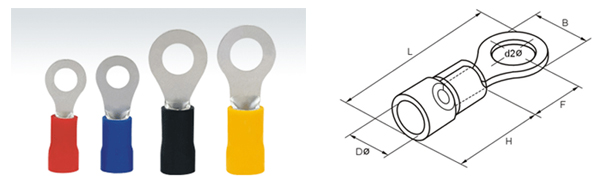

Circular Pre-insulating Terminal

Circular Pre-insulating Terminal



1.Cable size: 0.5~1.5mm2(AWG22~16)

    Max current:Imax=19A     Material:purple copper     Thickness:0.75mm

Type

USA screw

Bolt dia.d2

 (mm)

Dimension(mm)

Color

B

L

F

H



RV 1.25-3

#4

3.2

5.7

17.8

4.95

10.0

4.3

Red



RVS 1.25-3.5

#6

3.7

5.7

17.8

4.95



RVM 1.25-3.5

#6

3.7

6.6

20.1

6.3



RVL 1.25-3.5

#8

4.3

8.0

21.5

7.0



RVS 1.25-4

#8

4.3

6.6

20.1

6.3



RVL 1.25-4

#8

4.3

8.0

21.5

7.0



RV 1.25-5

#10

5.3

8.0

21.5

7.0



RVL 1.25-5

#10

5.3

9.8

23.0

8.5



RVS 1.25-6

1/4

6.4

9.8

23.0

8.5



RV 1.25-6

1/4

6.4

11.6

27.5

11.1



RV 1.25-8

5/16

8.1

11.6

27.5

11.1



RV 1.25-10

3/8

10.5

13.6

31.6

13.9



RV 1.25-12

1/2

13.0

19.2

36.0

16.5

2.Cable size:1.5~2.5mm2(AWG16~14)

    Max current:Imax=27A     Material: purple copper    Thickness:0.8mm

Type

USA screw

Bolt dia.d2

 (mm)

Dimension(mm)

Color

B

L

F

H



RV 2-3

#4

3.2

6.6

17.8

4.3

10.0

4.9

Blue



RVS 2-3.5

#6

3.7

6.6

17.8

4.3



RVM 2-3.5

#6

3.7

6.6

20.1

7.0



RVL 2-3.5

#8

3.7

8.5

22.5

7.75



RVS 2-4

#8

4.3

6.6

21.0

7.0



RVL 2-4

#8

4.3

8.5

22.5

7.75



RV 2-5

#10

5.3

8.5

22.5

7.75



RVL 2-5

#10

5.3

9.5

22.5

7.25



RV 2-6

1/4

6.4

12.0

27.6

11.0



RV 2-8

5/16

8.1

12.0

27.6

11.0



RV 2-10

3/8

10.5

13.6

30.2

13.9



RV 2-12

1/2

13.0

19.2

36.5

16.5

3.Cable size: 2.5~4mm2(AWG14~12)

    Max current:Imax=37A     Material: purple copper    Thickness:1.0mm

Type

USA screw

Bolt dia.d2

 (mm)

Dimension(mm)

Color

B

L

F

H



RV 3.5-4

#8

4.3

8.0

24.5

7.7

13.0

6.2

Black



RVS 3.5-5

#10

5.3

8.0

24.5

7.7



RVL 3.5-5

#10

5.3

12.0

27.9

7.7



RV 3.5-6

1/4

6.4

12.0

27.9

7.7

4.Cable size: 4~6mm2(AWG12~10)

     Max current:Imax=48A     Material: purple copper    Thickness:1.0mm

Type

USA screw

Bolt dia.d2

 (mm)

Dimension(mm)

Color

B

L

F

H



RV 5.5-3.5

#6

3.7

7.2

21.4

5.9

13.0

6.7

Yello



RVS 5.5-4

#8

4.3

7.2

21.4

5.9



RVL 5.5-4

#8

4.3

9.5

25.5

8.3



RV 5.5-5

#10

5.3

9.5

25.5

8.3



RV 5.5-6

1/4

6.4

12.0

31.5

13.0



RV 5.5-8

5/16

8.4

15.0

33.7

13.7



RV 5.5-10

3/8

10.5

15.0

33.7

13.7



RV 5.5-12

1/2

13.0

19.2

38.1

16.0
