DT DL Copper,Aluminium Connecting Terminal
Application
These terminals are suitable for the conjunction of wires,cables in the distribution equipment and the electrical equipment. DL series of aluminum connecting terminals are pressed with aluminum bar(L3), DT series of copper connecting terminals with copper bar(T2).

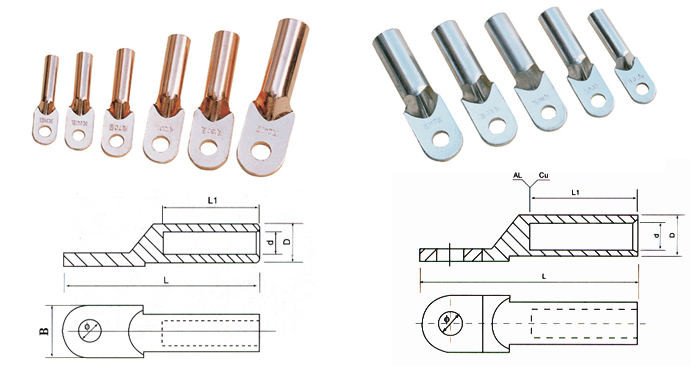

Technical Data
|
Type
|
φ
|
D
|
d
|
L
|
L1
|
B
|
|
DT-10
|
8.5
|
9
|
5.3
|
62
|
28
|
16
|
|
DT-16
|
8.5
|
10
|
6.5
|
68
|
30
|
16
|
|
DT-25
|
8.5
|
11
|
7
|
70
|
33
|
18
|
|
DT-35
|
10.5
|
12
|
8.5
|
80
|
36
|
20.5
|
|
DT-50
|
10.5
|
14
|
9.5
|
85
|
38
|
23
|
|
DT-70
|
12.5
|
16
|
11.5
|
95
|
43
|
26
|
|
DT-95
|
12.5
|
18
|
13.5
|
104
|
46
|
28
|
|
DT-120
|
14.5
|
20
|
15
|
112
|
49
|
30
|
|
DT-150
|
14.5
|
22
|
16.5
|
120
|
51
|
34
|
|
DT-185
|
16.5
|
25
|
18.5
|
125
|
55
|
37
|
|
DT-240
|
16.5
|
27
|
21
|
136
|
60
|
40
|
|
DT-300
|
21
|
31
|
23.5
|
155
|
66
|
50
|
|
DT-400
|
21
|
34
|
26.5
|
170
|
75
|
50
|
|
DT-500
|
21
|
38
|
29
|
190
|
75
|
60
|
|
DT-630
|
21
|
45
|
35
|
220
|
85
|
80
|
|
DT-800
|
21
|
50
|
38
|
260
|
85
|
100
|
|
|
Type
|
φ
|
D
|
d
|
L
|
L1
|
|
DL-10
|
8.5
|
9
|
6
|
68
|
28
|
|
DL-16
|
8.5
|
10
|
6
|
70
|
30
|
|
DL-25
|
8.5
|
12
|
7
|
75
|
34
|
|
DL-35
|
10.5
|
14
|
8.5
|
85
|
38
|
|
DL-50
|
10.5
|
16
|
9.8
|
90
|
40
|
|
DL-70
|
12.5
|
18
|
11.5
|
102
|
48
|
|
DL-95
|
12.5
|
21
|
13.5
|
112
|
51
|
|
DL-120
|
14.5
|
23
|
15
|
120
|
53
|
|
DL-150
|
14.5
|
25
|
16.5
|
126
|
56
|
|
DL-185
|
16.5
|
27
|
18.5
|
133
|
58
|
|
DL-240
|
16.5
|
30
|
21
|
140
|
60
|
|
DL-300
|
21
|
34
|
24
|
160
|
65
|
|
DL-400
|
21
|
38
|
26
|
170
|
70
|
|
DL-500
|
21
|
47
|
29
|
190
|
75
|
|
DL-630
|
21
|
54
|
35
|
220
|
85
|
|
DL-800
|
21
|
60
|
38
|
250
|
100
|
|
