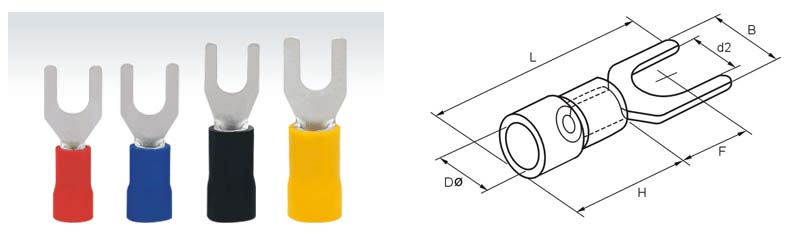

Furcate Pre-insulating Terminal

Furcate Pre-insulating Terminal



1.Cable size:0.5～1.5mm2(A.W.G.22～16)

   Max current:Imax=19A    Material:purple copper 　   Thickness:0.75mm

Type

USA screw

Bolt dia.d2

 (mm)

Dimension(mm)

Color

B

L

F

H

Dφ

SV 1.25-3

#4

3.2

5.7

21.2

6.5

10.0

4.3

Red

SVS 1.25-3.5

#6

3.7

5.7

21.2

6.5

SVL 1.25-3.5

#6

3.7

6.4

21.2

6.5

SVS 1.25-4

#8

4.3

6.4

21.2

6.5

SVM 1.25-4

#8

4.3

7.2

21.2

6.5

SVL 1.25-4

#8

4.3

8.1

21.2

6.5

SVS 1.25-5

#10

5.3

8.1

21.2

6.5

SVL 1.25-5

#10

5.3

9.5

21.2

6.5

SVS 1.25-6

1/4

6.4

9.5

21.2

6.5

SVL 1.25-6

1/4

6.4

12.0

27.2

11.0



2.Cable size:1.5～2.5mm2(A.W.G.16～14)

   Max current:Imax=27A    Material:purple copper 　   Thickness:0.8mm

Type

USA screw

Bolt dia.d2

 (mm)

Dimension(mm)

Color

B

L

F

H

Dφ

SV 2-3

#4

3.2

5.7

21.2

6.5

10.0

4.9

Blue

SVS 2-3.5

#6

3.7

5.7

21.2

6.5

SVL 2-3.5

#6

3.7

6.0

21.2

6.5

SVS 2-4

#8

4.3

6.4

21.2

6.5

SVM 2-4

#8

4.3

7.2

21.2

6.5

SVL 2-4

#8

4.3

8.1

21.2

6.5

SVS 2-5

#10

5.3

8.1

21.2

6.5

SVL 2-5

#10

5.3

9.5

21.2

6.5

SVS 2-6

1/4

6.4

9.5

21.2

6.5

SVL 2-6

1/4

6.4

12.0

27.2

11.0



3.Cable size:2.5～4mm2(A.W.G.14～12)

   Max current:Imax=37A    Material:purple copper 　   Thickness:1.0mm.

Type

USA screw

Bolt dia.d2

 (mm)

Dimension(mm)

Color

B

L

F

H

Dφ

SV 3.5-3

#4

3.2

5.7

24.8

7.0

13.0

6.2

Black

SV 3.5-4

#8

4.3

8.0

24.8

7.0

SV 3.5-5

#10

5.3

8.0

24.8

7.0

SV 3.5-6

1/4

6.4

12.0

28.0

12.1



4.Cable size:4～6mm2(A.W.G.12～10)

   Max current:Imax=48A    Material:purple copper 　   Thickness:1.0mm.

Type

USA screw

Bolt dia.d2

 (mm)

Dimension(mm)

Color

B

L

F

H

Dφ

SV 5.5-3.5

#6

3.7

8.3

25.2

7.5

13.0

6.7

Yellow

SVS 5.5-4

#8

4.3

8.3

25.2

7.5

SVL 5.5-4

#8

4.3

9.0

25.2

7.5

SV 5.5-5

#10

5.3

9.0

25.2

7.5

SVS 5.5-6

1/4

6.4

9.0

25.2

7.5

SVL 5.5-6

1/4

6.4

12.0

31.2

12.0

SV 5.5-8

5/16

8.4

14.0

30.0

11.5



Return
