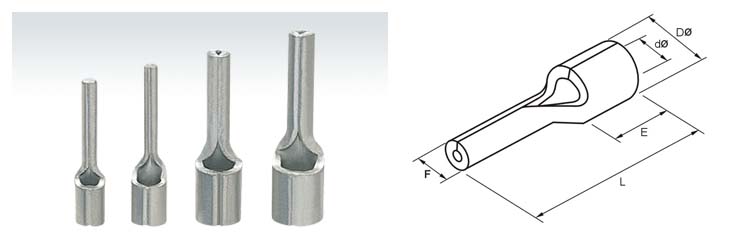

Pin-shaped Naked Terminal

Pin-shaped Naked Terminal

1.Cable size: 0.5～1.5mm2(A.W.G.22～16)

Max current: Imax=19A    Material:purple copper　   Thickness:0.75mm

Type

Dimension(mm)

F

L

E

Dφ

dφ



PTN 1.25-9

1.9

13.8

4.8

3.4

1.7



PTN 1.25-10

1.9

14.8



PTN 1.25-12

1.9

16.8



PTN 1.25-13

1.9

17.8



PTN 1.25-18

1.9

22.8



2.Cable size: 1.5～2.5mm2(A.W.G.16～14)

Max current: Imax=27A    Material:purple copper　   Thickness:0.8mm

Type

Dimension(mm)

F

L

E

Dφ

dφ



PTN 2-9

1.9

13.8

4.8

4.1

2.3



PTN 2-10

1.9

14.8



PTN 2-12

1.9

16.8



PTN 2-13

1.9

17.8



PTN 2-18

1.9

22.8



3.Cable size: 2.5～4mm2(A.W.G. 14～12)

 Max current: Imax=36A    Material:purple copper　   Thickness:1.0mm

Type

Dimension(mm)

F

L

E

Dφ

dφ



PTN 3.5-10

2.8

14.8

6.0

5.0

3.0



PTN 3.5-13

2.8

19.8



4.Cable size: 4～6mm2(A.W.G. 12～10)

 Max current: Imax=48A    Material:purple copper　   Thickness:1.0mm.

Type

Dimension(mm)

F

L

E

Dφ

dφ



PTN 5.5-13

2.8

19.8

6.0

5.6

3.4
