MDR-10

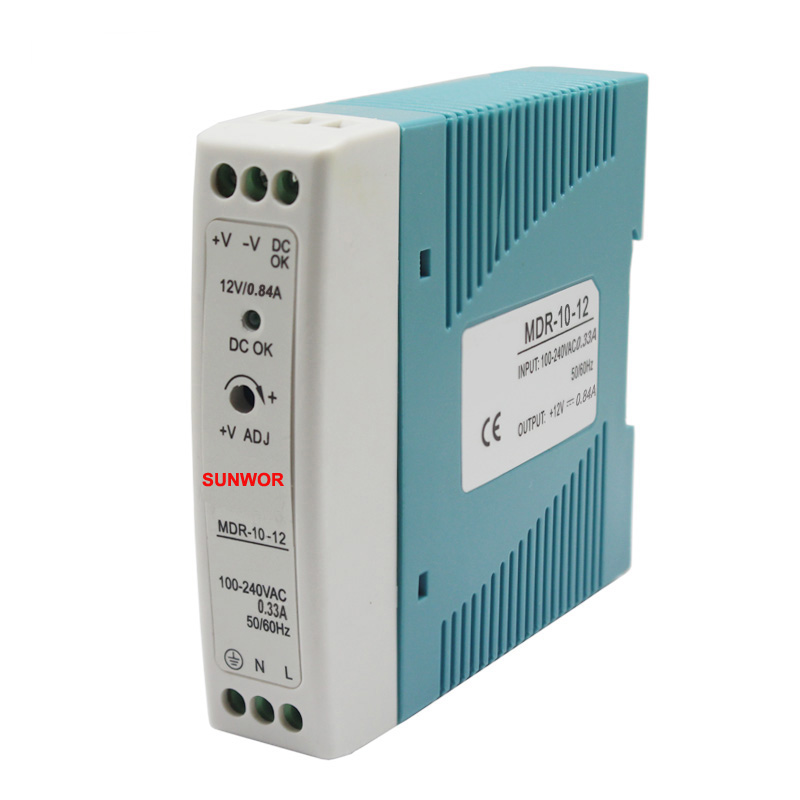

10W Single Output Din-Rail Switching Power Supply MDR-10

Features:

Universal AC input/ full range
Protections: Short circuit/ Over load/ Over voltage
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
isolation classⅡ
LED indicator for power on
100% full load burn-in test
2 years warranty



SPECIFICATIONS

OUTPUT



Model

MDR-10-5

MDR-10-12

MDR-10-15

MDR-10-24

DC Voltage

5V

12V

15V

24V

Rated Current

2A

0.83A

0.66A

0.41A

Current Range

0-2A

0-0.83A

0-0.66A

0-0.41A

Rated Power

10W

10W

10W

10W

Ripple & Noise

80mVp-p

120mVp-p

120mVp-p

150mVp-p

Voltage Adj. Range

-5%,+10%

-8%,+10%

±10%

±10%

Voltage Tolerance

±2%

±1%

±1%

±1%

Setup, Rise Time

500ms,30ms/230VAC1000ms,30ms/115VAC at full load

Hold Up Time

50ms/230VAC20ms/115VAC at full load





INPUT



Voltage Range

88~264VAC47~63Hz; 124~370VDC

AC Current

0.05A/115V0.35A/ 230V

Efficiency

76%

80%

81%

84%

Inrush Current

Cold start 20A/115V40A/230V

Leakage Current

<1mA/240VAC





PROTECTION



Over Load

105%~160%

Protection type: Constant current limiting, recovers automatically after fault condition is removed

Over Voltage

115%~135%

Protection type: Shut down o/p voltage, re-power on to recover





ENVIRONMENT



Working Temp., Humidity

-20~+60; 20%~90%RH

Storage Temp., Humidity

-40~+85; 10%~95%RH

Temp. Coefficient

±0.03%/(0~50)

Vibration

10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes





SAFETY



Withstand Voltage

I/P-O/P: 3KVAC

Isolation Resistance

I/P-O/P: 100M Ohms / 500VDC





STANDARD



Safety Standard

Design refer to UL60950-1,TUV EN60950-1,EN50178

EMC Standard

Design refer to EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,ENV50204,EN55024,EN61000-6-2EN61204-3





OTHERS



Dimension

22.5*90*100mm(W*H*L)

Weight

0.20KG





NOTE



1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.

2.Ripple & noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1μ & 47μparallel capacitor.

3.Tolerance: includes set up tolerance, line regulation and load regulation.

4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
