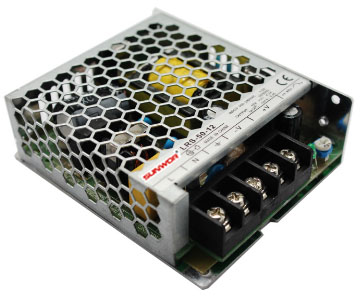

50W Single Output Switching Power Supply LRS-50

Features:

Universal AC input/ full range

Withstand 300VAC surge input for 5 seconds

Protections: Short circuit / Overload / Over voltage

Cooling by free air convection

LED indicator for power on

100% full load burn-in test

High operating temperature up to 70℃

High efficiency, long life and high reliability

2 years warranty

SPECIFICATION
OUTPUT
Model	LRS-50-3.3	LRS-50-5	LRS-50-12	LRS-50-15	LRS-50-24		LRS-50-36		LRS-50-48
DC Voltage	3.3V	5V	12V	15V	24V		36V		48V
Rated Current	10A	10A	4.2A	3.4A	2.2A		1.45A		1.1A
Current Range	0~10A	0~10A	0~4.2A	0~3.4A	0~2.2A		0~1.45A		0~1.1A
Rated Power	33W	50W	50.4W	51W	52.8W		52.2W		52.8W
Ripple&Noise	80mVp-p	80mVp-p	120mVp-p	120mVp-p	150mVp-p		200mVp-p		200mVp-p
VoltageAdj. Range	2.97~3.6V	4.5 ~ 5.5V	10.2~ 13.8V	13.5~18V	21.6~28.8V		32.4~39.6V		43.2~52.8V
Voltage Tolerance	±3.0%	±2.0%	±1.0%	±1.0%	±1.0%		±1.0%		±1.0%
Line Regulation	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%		±0.5%		±0.5%
Load Regulation	±2.0%	±1.0%	±0.5%	±0.5%	±0.5%		±0.5%		±0.5%
Setup,Rise Time	1000ms, 30ms/230VAC 2000ms, 30ms/115VAC at full load
Hold Up Time	30ms/230VAC 12ms/115VAC at full load

INPUT
Voltage Range	85 ~ 264VAC 120 ~ 375VDC
Frequency Range	47 ~ 63Hz
Efficiency	80%	83%	86%	88%	88%	89%		90%
AC Current	0.95A/115VAC 0.56A/230VAC
Inrush Current	Cold start 45A/230VAC
Leakage Current	<0.75mA / 240VAC

PROTECTION
Over Load	110 ~ 150% rated output power
	Protection type: Hiccup mode, recovers automatically after fault condition is removed
Over Voltage	3.8~4.45V	5.9~7.3V	13.8~16.2V	18.75~21.75V	28.8~33.6V	41.4~48.6V		55.2~64.8V
	Protection type: shut down o/p voltage, re-power on to recover

ENVIRONMENT
Working Temp.	-30 ~ +70℃ (Refer to “derating curve”)
Working Humidity	20 ~ 90% RH non-condensing
StorageTemp., Humidity	-40 ~ +85℃, 10 ~ 95% RH
Temp. Coefficient	±0.03%/℃ (0 ~ 50℃)
Vibration	10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY
Safety Standards	UL60950-1, TUV EN60950-1, EN60335-1/-2-16, CCC GB4943 approved
Withstand Voltage	I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC
Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃ / 70% RH
EMC Emission	Compliance to EN55022(CISPR22), GB9254 CLASS B, EN55014 EN 61000-3-2,-3
EMC Immunity	Compliance to EN61000-4-2,3,4,5,6,8,11, EN61000-6-2(EN50082-2), heavy industry level, criteria A

OTHERS
Dimension	998230mm (LWH)
Weight	0.23 kg
NOTE: 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4. Line regulation is measured from low line to high line at rated load. 5. Load regulation is measured from 0% to 100% rated load. 6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meetsEMC directives. 7. Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quickly may lead to increase of the set up time.
