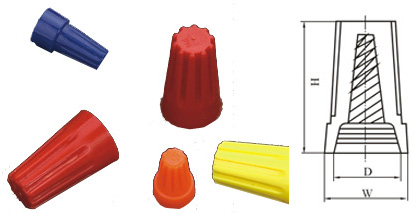

Screw On Wire Connector

Screw On Wire Connector


Material:UL Nylon 66 , with spring inside.
Usage:peel wire coat, insert the wire in, then tighten.

ITEM.NO.

H(mm)

W(mm)

D(mm)

SUITABLE WIRES

COLOR

SP71

15

8.5

6.5

MIN#20×1+#22×1
MAX#16×2

Grey

SP72

18

10

7.5

MIN#20×3
MAX#16×3

Blue

SP73

20

11.5

9.5

MIN#20×3
MAX#16×3+#18×1

Orange

SP74

23.5

13.5

10.8

MIN#14×1+#18×1
MAX#14×4+#18×1

Yellow

SP75

23.5

15.5

12.7

MIN#14×2
MAX#10×2+#12×2

Red
