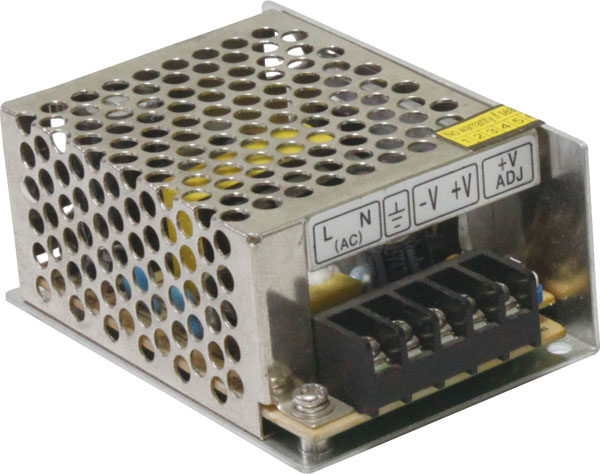

35W Mini Size Switching Power Supply

35W Mini Size Switching Power Supply



Technical Data

Index Type

MS-35-5

MS-35-12

MS-35-15

MS-35-24

DCVoltage

5V

12V

15V

24V

Voltage Tolerance

±2%

±1%

±1%

±1%

Rated Current

7A

3A

2.4A

1.51A

Current Range

0-7A

0-3A

0-2.4A

0-1.5A

Ripple&Noise(Max.)

75mVp-p

100mVp-p

100mVp-p

100mVp-p

Line Regulation

±0.5%

±0.5%

±0.5%

±0.5%

Load Regulation

±1%

±0.5%

±0.5%

±0.5%

Rated Power

35W

36W

36W

36W

Efficiency

70%

76%

78%

78%

Voltage Adjust Range

+10 -5%

±10%

±10%

±10%

Voltage Range

85264VACauto switch4763Hz;240370VDC

AC Current

0.8A/115V0.45A/230V

Inrush Current(Max.)

cold start current 18A/115V36A/230V

Leakage Current

<0.5mA/240VAC

Overload Protection

105%150%TYPECurrent limitation  auto recovery

Over-voltage Protection

......................

Over-temperature Protection

......................

Temp.Coefficient

±0.03%/(050)

Setup.Rise,Hold Time

200ms,100ms,30ms

Vibration

10500Hz,2G10min,/11cycle,60min,each axes

Withstand Voltage

I/P-O/P:3KVACI/P-FG:1.5KVACI/P-FG:0.5KVAC

Isolated Resistor

I/P-O/P,I/P-FG,I/P-FG:500VDC/100MΩ

Working Temp.Humidity

-10℃~+60(REFER TO CHARACTER CURVE),20%90RH

Storage Temp.Humidity

-20℃~+85,10%95%RH

Dimension

84×58×38mm

Weight

0.16Kgs

Safety Standards

Design refer to GB4943UL60950EN60950

EMC

Design refer to GB9254EN55022 Class B

Note
1.All parameters NOT specially mentioned are measured at 230VAC input ,rated load and 25 of ambient temperature.
2.Tolerance:includes set up tolerance,line regulation and load regulation
3.Ripple&noise are measured at 20MHZ of bandwidth by using a 12 twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.
4.line regulation:min&max voltage of the rated load.
5.load regulation:load from 0 to 100%.
