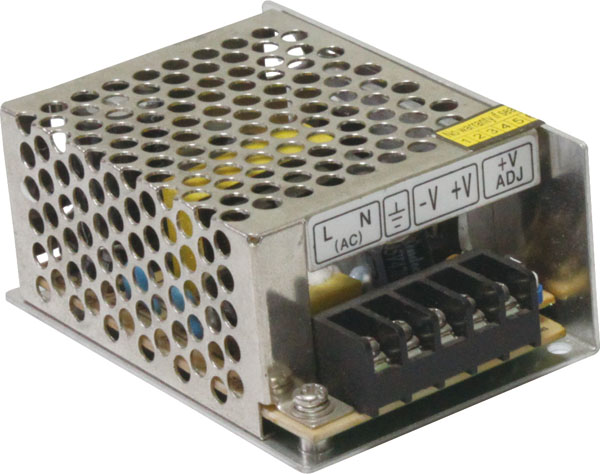

25W Mini Size Switching Power Supply

25W Mini Size Switching Power Supply





Technical Data

Index Type

MS-25-5

MS-25-12

MS-25-15

MS-25-24

DC Voltage

5V

12V

15V

24V

Voltage Tolerance

±2%

±1%

±1%

±1%

Rated Current

5A

2.1A

1.7A

1.1A

Current Range

0-5A

0-2.1A

0-1.7A

0-1.1A

Ripple&Noise(Max.)

50mVp-p

100mVp-p

100mVp-p

100mVp-p

Line Regulation

±0.5%

±0.5%

±0.5%

±0.5%

Load Regulation

±1%

±0.5%

±0.5%

±0.5%

Rated Power

25W

25.2W

25.5W

26.4W

Efficiency

72%/115VAC

76%/115VAC

77%/115VAC

80%/115VAC

Voltage Adjust Range

+10 -5%

±10%

±10%

±10%

Voltage Range

85264VAC 4763Hz;120370VDC

AC Current

0.6A/115V0.35A/230V

Inrush Current(Max.)

cold start current 15A/115V30A/230V

Leakage Current

<0.75mA/240VAC

Overload Protection

105%150%TYPEOUTPUT CUTOUT auto recovery

Over-voltage Protection

115%-135%

Over-temperature Protection

......................

Temp.Coefficient

±0.03%/(050)

Setup.Rise,Hold Time

800ms,50ms,10ms/115VAC 300ms,50ms,80ms/230VAC

Vibration

10500Hz,2G10min,/1cycle,60min,each axes

Withstand Voltage

I/P-O/P:3KVACI/P-FG:1.5KVACO/P-FG:0.5KVAC

Isolated Resistor

I/P-O/P,I/P-FG,O/P-FG:500VDC/100MΩ

Working Temp.Humidity

-10℃~+60(REFER TO CHARACTER CURVE),20%90RH

Storage Temp.Humidity

-20℃~+85,10%95%RH

Dimension

84×58×38mm

Weight

0.15Kgs

Safety Standards

Design refer to GB4943UL60950EN60950

EMC

Design refer to GB9254EN55022 Class B



Note
1.All parameters NOT specially mentioned are measured at 230VAC input ,rated load and 25 of ambient temperature.
2.Tolerance:includes set up tolerance,line regulation and load regulation
3.Ripple&noise are measured at 20MHZ of bandwidth by using a 12 twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.
4.line regulation:min&max voltage of the rated load.
5.load regulation:load from 0 to 100%.
