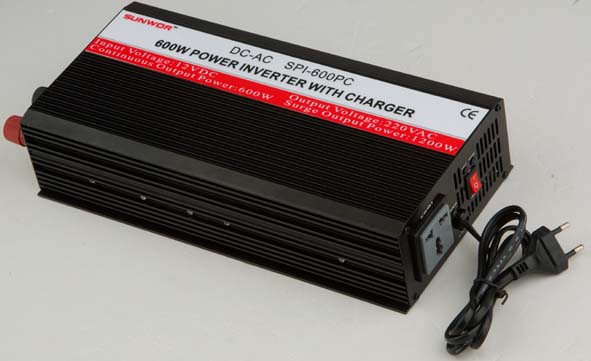

600W Pure Sine Wave Power Inverter With Charger

600W Pure Sine Wave Power Inverter With Charger

Power inverter instantly convert low voltage DC power to high voltage AC household power.
With innovative design and super efficiency, SUNWOR power inverter is widely applied for power tools, home appliance, office equipment, portable equipment…etc.
You can use in many places, such as cars,trucks, trailers, boats, solar system, wind generator.

● Features
◆ 12V or 24V or 48V DC input
◆ Output waveform: Modified sine wave
◆ Power On/Off switch
◆ LED indication
◆ High efficiency>90%
◆ High-velocity cooling fan
◆ Anodized aluminum case provides durability & max heat dissipation
◆ 8pcs/carton,Carton Size:42.5×42×42cm,G.W:24kg
◆ 1 year warranty

◆ All protection functions:
    Soft start
    AC output short-circuit and leakage protection
    High-low voltage isolation
    Input DC low voltage alarm,then shutdown
    Input DC high voltage alarm shutdown
    Overload shutdown
    Over heat shutdown
     Input polarity reverse shutdown
     3-stage smartly charging
     Fully charged,stop charging automatically

● Specification

Item No.		SPI-600PC12	SPI-600PC24
Output	AC Voltage	100/110/120VAC,220/230/40VAC
	Continuous Power	600W
	Surge Power	1200W
	Waveform	Pure Sine Wave
	THD	<5%
Input	DC Voltage	12VDC	24VDC
	Voltage Range	10.5～15VDC	21～30VDC
	No Load Current Draw	<0.8A
	Fuse	35A×3 pcs 15A×3 pcs
	Charging Current	10A
Protection	Battery Low Alarm	10.5+0.5V	21+1V
	Battery Less Shutdown	10+0.5V	20+1V
	Overload	>900W,shut down,re-operate automatically when load in normal
	Over Voltage	15～16VDC	30～ 2VDC
	Over Temperature	>65 ℃ ,Shut off,re-operate automatically when temperature goes down.
	Short Circuit	Shut off,re-operate automatically after fault condition is removed.
	Input Polarity Reverse	Fuse burnt,replace with a new fuse.
