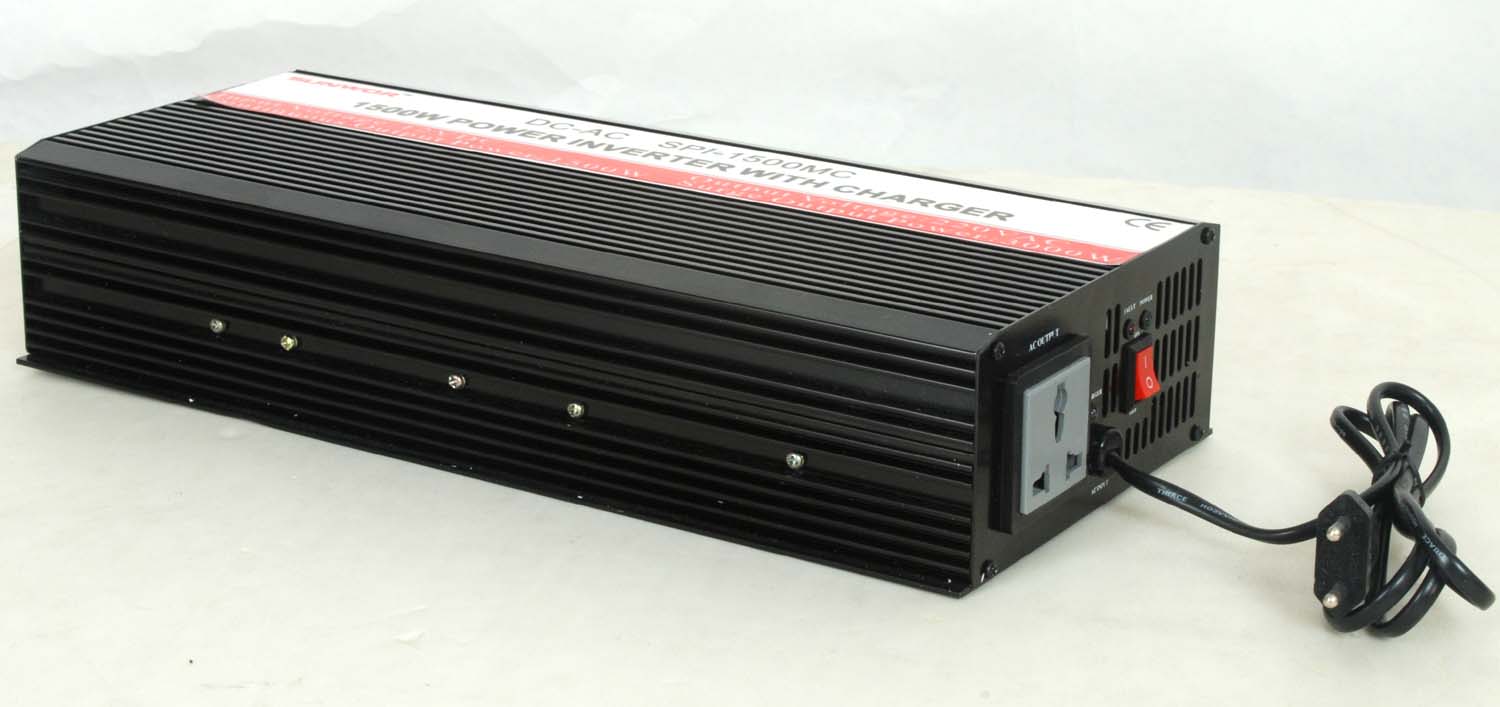

1500W Modified Sine Wave Power Inverter With Charger

1500W  Modified Sine Wave Power Inverter With Charger


Power inverter instantly convert low voltage DC power to high voltage AC household power.
With innovative design and super efficiency, SUNWOR power inverter is widely applied for power tools, home appliance, office equipment, portable equipment…etc.
You can use in many places, such as cars,trucks, trailers, boats, solar system, wind generator.

● Features
◆ 12V or 24V or 48V DC input
◆ Output waveform: Modified sine wave
◆ Power On/Off switch
◆ LED indication
◆ High efficiency>90%
◆ High-velocity cooling fan
◆ Anodized aluminum case provides durability & max heat dissipation
8pcs/carton,Carton Size:42.5×42×42cm,G.W:27.50kg
◆ 1 year warranty

All protection functions:
    Soft start
    AC output short-circuit and leakage protection
    High-low voltage isolation
    Input DC low voltage alarm,then shutdown
    Input DC high voltage alarm shutdown
    Overload shutdown
    Over heat shutdown
     Input polarity reverse shutdown
     3-stage smartly charging
     Fully charged,stop charging automatically


● Specification

Item No.

SPI-1500MC12

SPI-1500MC24

Output

AC Voltage

100/110/120VAC,220/230/40VAC

Continuous Power

1500W

Surge Power

3000W

Waveform

Modified Sine Wave

Input

DC Voltage

12VDC

24VDC

Voltage Range

10.5~15VDC

21~30VDC

No Load Current Draw

<0.5A

Fuse

35A×6pcs              15A×6pcs

Charging Current

10A

Protection

Battery Low Alarm

10.5+0.5V

21+1V

Battery Less Shutdown

10+0.5V

20+1V

Overload

>1800W,shut down,re-operate automatically when load in normal

Over Voltage

15~16VDC

30~32VDC

Over Temperature

>65℃ ,Shut off,re-operate automatically when temperature goes down.

Output Short Circuit

Shut off,re-operate automatically after fault condition is removed.

Input Polarity Reverse

Fuse burnt,replace with a new fuse.
