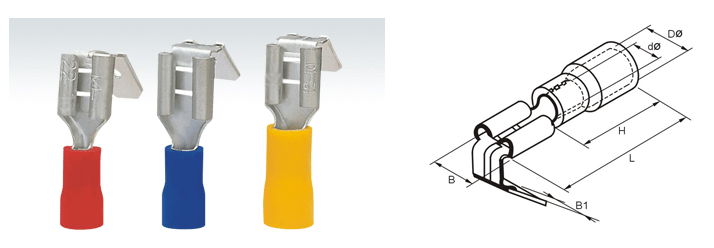

Shoulder Shaped Pre-insulating Terminal

Shoulder Shaped Pre-insulating Terminal



1.Cable size: 0.5~1.5mm2(A.W.G. 22~16)

Max current:Imax=10A     Material:copper

Type

Tab size(mm)

Dimension(mm)

B

B1

H

Dφ

dφ

L



PBDD 1.25-250

0.8×6.35

7.4

6.35

10.0

3.8

1.7

21.5



2. Cable size: 1.5~2.5mm2(A.W.G 16~14)

     Max current Imax=15A     Material:Copper

Type

Tab size(mm)

Dimension(mm)

B

B1

H

Dφ

dφ

L



PBDD 2-250

0.8×6.35

7.4

6.35

10.0

4.3

2.3

21.5



3. Cable size:4~6mm2(A.W.G 12~10)

Max current Imax=24A     Material:Copper

Type

Tab size(mm)

Dimension(mm)

B

B1

H

Dφ

dφ

L



PBDD 5.5-250

0.8×6.35

7.4

6.35

13.0

5.7

3.4

25.0
